Four Post Car Lift 4T

Four Post Car Lift 4T

1. Manual,pneumatic and electric release are available.

2. Connections axis drive, good mechanical synchronism and strong lifting capacity.

3. Hydraulic power unit with throttling device, adjustable rate of decline.

4. Hydraulic oil cylinder drive, wire rope drive,stable and smooth lifting.

5. Equipped with wire control security lock, with the function of wire rope anti-fracture, more secure operation.

6. Adjustable runway spacing, fit for different vehicles.

7. Shot blasting surface treatment, advanced outdoor powder automatic electrostatic spraying, aesthetic and durable.

8. German Bosch Rexroth hydraulic valve parts, Italian imported oil sealing ring and ball valve.

Detail Display

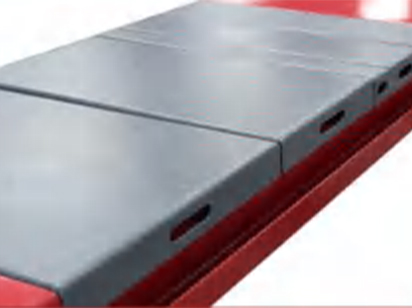

Grooves box with waist hole

Grooves Box With Waist Hole

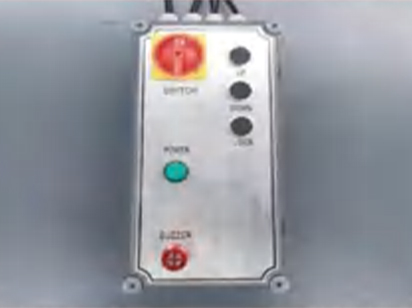

Electric release

Electric Release

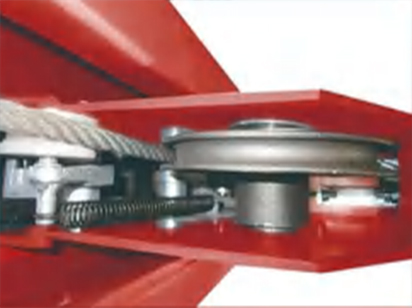

Wire rope anti-fracture system

Wire Rope Anti-fracture System

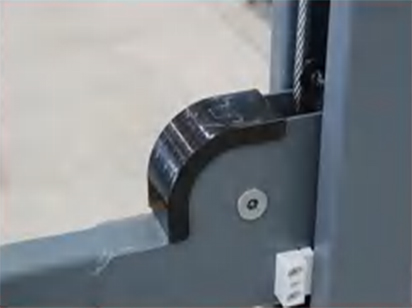

Oil injection hole,plastic cover

Oil Injection Hole,Plastic Cover

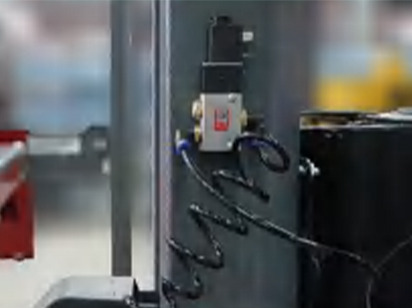

Pneumatic release

Pneumatic Release

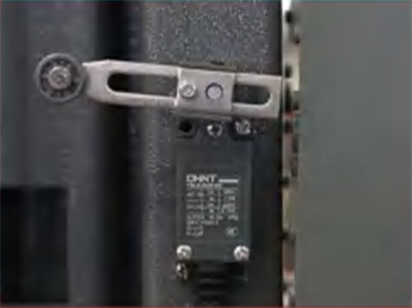

Top limit switch

Top Limit Switch

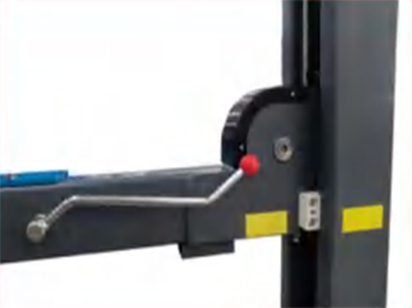

Manual release

Manual Release

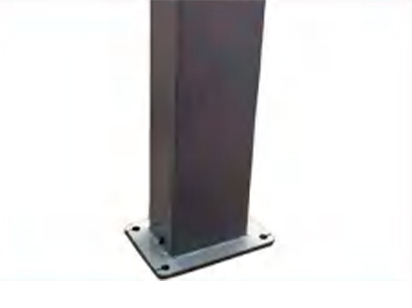

Square post

Square Post

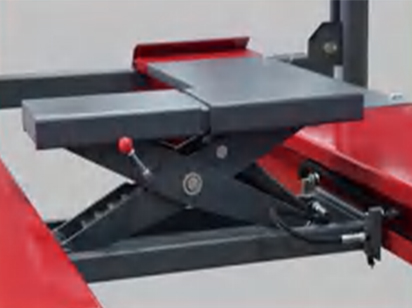

Adjustable trolley base with manual lock fitted

Adjustable Trolley Base With Manual Lock Fitted

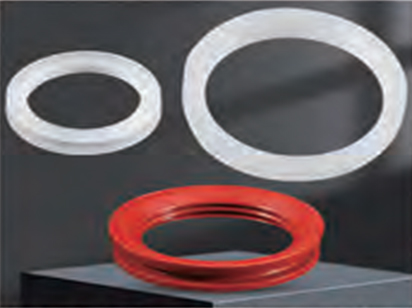

Italian/Japanese seal ring

Italian/Japanese Seal Ring


Parameter


ModelZH-4.0SJ
Lifting Capacity4000KG
Primary Lifting Height1600mm
Secondary Lifting Height470mm
Minimum Height260mm
Lifting Time37s
Platform Length4200/4500mm
Platform Width550mm
Voltage220v/380v/240v/415v
Power2.2kw
Overall Length4585mm/4885mm
Overall Width3260mm
