Single-side Unlocking Gantry Lift 4T

Single-side Unlocking Gantry Lift 4T

1. High strength enlarged base.

2. Simply push one button for releasing.

3. 24V safety electronic control box for option.

4. Shot blasting surface treatment,advanced outdoor powder automatic
electrostatic spraying, aesthetic and durable.

5. German Dr. Rexroth hydraulic valve parts, Italy imported oil sealing and
ball valve.

Detail Display

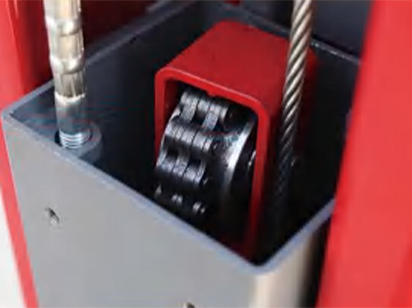

4x4 Chains

4x4 Chains

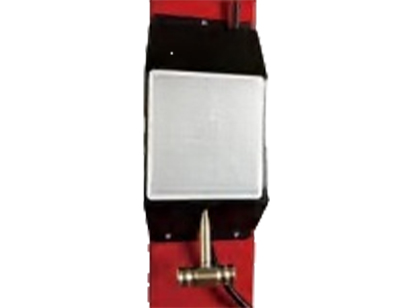

One Side Manual Release

One Side Manual Release

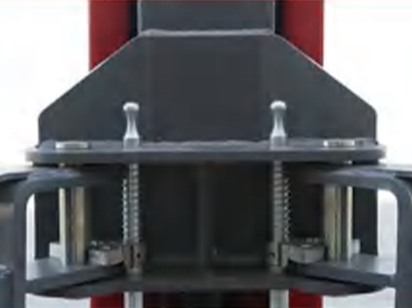

Butterfly Stiffener

Butterfly Stiffener

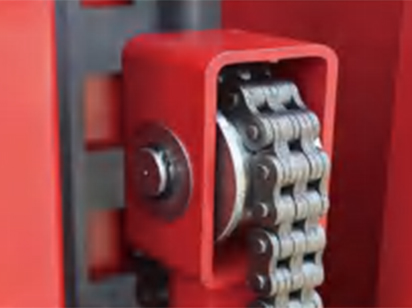

Chain Shield

Chain Shield

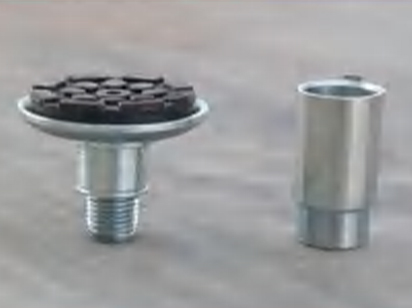

Bow Pattern and Single Screw Pad+height Adapter

Bow Pattern and Single Screw Pad+height Adapter

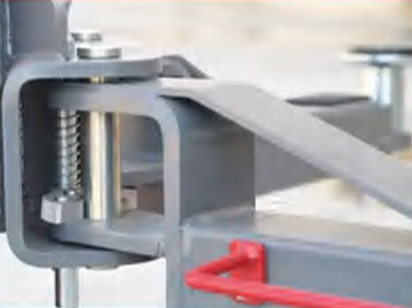

Integral Slide Table

Integral Slide Table

Sealing rings imported from Italy and Japan

Sealing rings imported from Italy and Japan


Parameter


ModelZH-4.0LM
Lifting Capacity4000KG
Lifting Height1900MM
Minimum Height110MM
Clear Width2500MM
Total Width3380MM
Internal Width2800MM
Motor Power2.2KW-380V or 2.2KW-220V
Rated Oil Pressure24Mpa
