Electric Unlocking Gantry Lift 4T

Electric Unlocking Gantry Lift 4T

1. High strength enlarged base.

2. Electric Release,24V safe electronic control box.

3. Durable cylinders in each column carry with anti-surge valves.

4. The screw-type lifting pads are easily adjustable in height for easier
alignment of vehicle support points.

5. Shot blasting surface treatment,advanced outdoor powder automatic
electrostatic spraying, aesthetic and durable.

6. Pre-fixed hydraulic pressure prevents overloading operation.

Detail Display


4X4 Chains

4X4 Chains

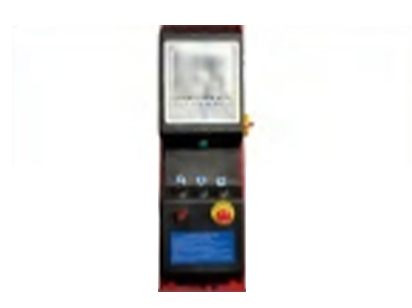

Electric Release

Electric Release

Butterfly Stiffener

Butterfly Stiffener

Chain Shield

Chain Shield

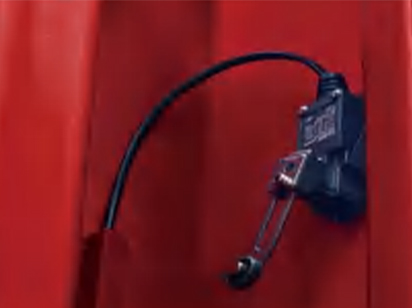

Top Limit Switch

Top Limit Switch

Bow pattern and single screw pad+height adapter

Bow pattern and single screw pad+height adapter

Integral Slide Table

Integral Slide Table

Italian/Japanese Seal Ring

Italian/Japanese Seal Ring


Parameter


ModelZH-4.0LM
Lifting Capacity4000KG
Lifting Height1900MM
Min. Height110MM
Pass Width2500MM
Overall Width3380MM
Inner Column Width2800MM
Motor Power2.2KW-380V or 2.2KW-220V
Rated Oil Pressure24Mpa
Lifting Time50-60秒
