1. Maximum lifting capacity,4000kg, suitable for sheet metal, mechanical repair and other workstations.High strength enlarged base.
2. One side manual release.
3. 24V safety electronic control box for option.
4. Safety lock works within 500mm from the ground.
5. Shot blasting surface treatment,advanced outdoor powder automatic electrostatic spraying, aesthetic and durable.
6. German Dr. Rexroth hydraulic valve parts, Italy imported oil sealing and ball valve.

Pure Copper Motor

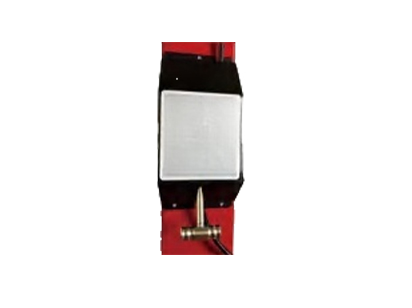

One Side Manual Release

Butterfly Stiffener

Chain Shield

Top Limit Switch

Bow pattern and single screw pad+height adapter

Integral Slide Table

Italian/Japanese Seal Ring
| Model | ZH-4.0SZ |
| Lifting Capacity | 4000KG |
| Lifting Height | 1850MM |
| Min. Height | 110MM |
| Pass Width | 2740MM |
| Overall Width | 3300MM |
| Overall Height | 2810mm |
| Lifting Time | 50-60S |
