Electric Unlocking Two-post Lift 4T

Electric Unlocking Two-post Lift 4T

1. Base Plate type for low ceiling workshops and garages.

2. Electric Release,24V safe electronic control box.

3. Durable cylinders in each column carry with anti-surge valves.

4. The screw-type lifting pads are easily adjustable in height for easier alignment of vehicle support points.

5. Safety lock works within 500mm from the ground.

6. Shot blasting surface treatment,advanced outdoor powder automatic electrostatic spraying, aesthetic and durable.

7. Pre-fixed hydraulic pressure prevents overloading operation.

Detail Display


Electric Release

Electric Release

Butterfly Stiffener

Butterfly Stiffener

Chain Shield

Chain Shield

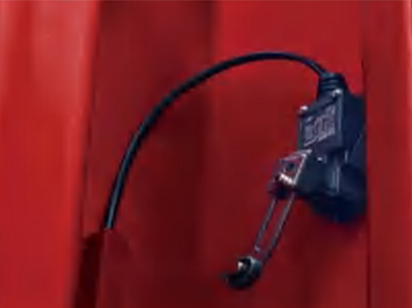

Top Limit Switch

Top Limit Switch

Bow pattern and single screw pad+height adapter

Bow pattern and single screw pad+height adapter

Integral Slide Table

Integral Slide Table

Italian/Japanese Seal Ring

Italian/Japanese Seal Ring


Parameter


ModelZH-4.0SZ
Lifting Capacity4000KG
Lifting Height1900MM
Min. Height110MM
Pass Width2500MM
Overall Width3380MM
Inner Column Width2800MM
Motor Power2.2KW-380V or 2.2KW-220V
Rated Oil Pressure24Mpa
Lifting Time50-60S
