Rapid uniform heating, ±1℃ precise temp control, dead-angle-free airflow, clean paint finish.
Thickened galvanized body, anti-corrosion & wear-resistant, explosion-proof light + original fan + high-efficiency filter cotton.
Eco-compliant, high-efficiency waste gas treatment, ultra-quiet & energy-saving, excellent sealing and insulation.
Fit all paint types, high-gloss finish, compatible with all vehicle models, customizable space.
Multi-layer safety protection, grounded anti-leakage, compliant with industrial safety standards.
One-click start/stop, easy operation, replaceable filter cotton, high yield & cost-saving.
Modular assembly for quick installation, detachable & movable, high space utilization, flexible layout.

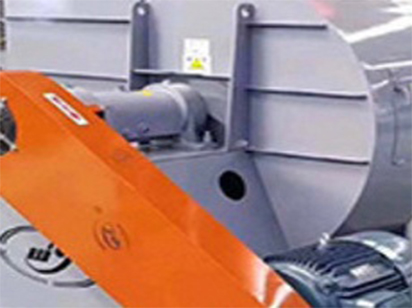

Explosion-proof fan

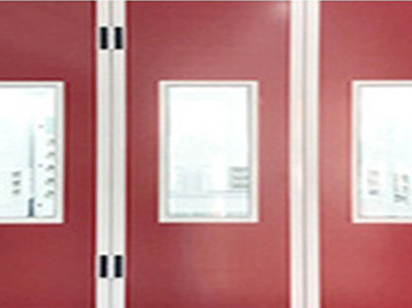

Tempered glass door with aluminum alloy edging

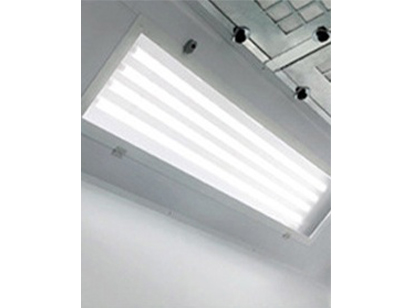

High-brightness LED

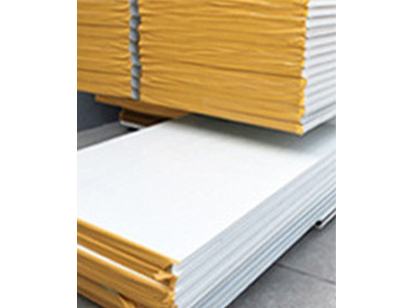

High-density wall panel

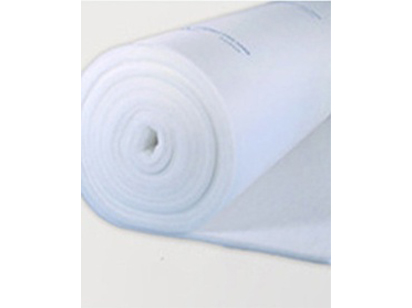

High-efficiency filter cotton

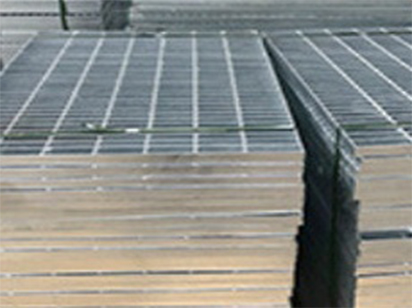

Thickened grid (stable and durable)

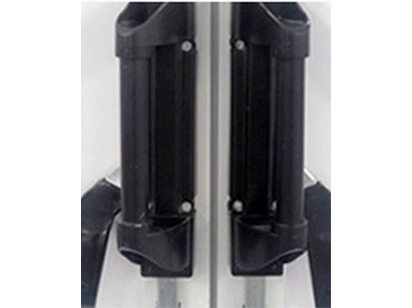

Durable aluminum alloy top and bottom lock

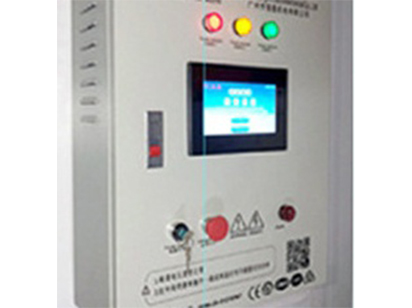

Intelligent electric control box with LCD screen
| External Dimensions | 7000×5100×3400mm(L×W×H) | |
| Internal Dimensions | 6900×3900×2650mm(L×W×H) | |
| Main Gate | Three-panel doors, 3000 × 2600 mm (W × H), sheet metal doors with tempered glass panels | |
| Service Door | 700 × 1800 mm (W × H), with pressure lock, viewing window and work surface | |
| Main Systems | ||
| Building Envelope System | 1) Wall Panels | 1) 50 mm tongue-and-groove fire-resistant rock wool boards, 0.4 mm colour-coated steel sheets |
| 2) Ceiling | 2) 50 mm tongue-and-groove fire-resistant rock wool boards, 0.4 mm colour-coated steel sheets | |
| Platform | Reinforced channel steel welded base, height 280 mm, fitted with steel structure supports, 3 rows of 30 x 4 mm floor grating, 2 rows of chequer plate, 2 loading ramps, 620 x 2000 mm (W x L) | |
| Air Supply and Exhaust System | Air Intake Fan | 2 × 4 kW Inlet-flow Snail Fans |
| Exhaust Fan | 1 × 5.5 kW snail-type exhaust fan | |
| Cabinet Mounting Methods | Side air intake, bottom exhaust; powder-coated square-tube steel frame, sturdy and attractive. One fume cupboard, two 910 mm air ducts One 90° elbow | |
| Heating System | Electric Heating | Features an infrared heating system comprising eight sets of 3 kW double-door far-infrared heating lamps. Maximum operating temperature: 80°C. Heating time (20–80°C): 15–20 minutes. |
| Lighting System | Ceiling Light | 8 sets * 4 tubes * 16W LED daylight lamps |
| Waist Lamp | 10 sets * 1 x 40W LED daylight tube | |
| Filtration System | Pre-filter | G2 grade, filtration efficiency >83% |
| High-efficiency filter cotton (top section) | EU5-grade high-efficiency filtration, filtration efficiency >98%, exhaust air filtered through floor-mounted cotton filters | |
| Electrical Control System | Control Panel | Intelligent Electronic Control System |
| Features | Lighting, temperature and time settings, spray painting, temperature-controlled spray painting, paint curing, etc. | |
| Total Power | 38 KW | |
| Voltage and Frequency | 380V,50HZ | |
