1. The side slide plate is movable and suitable for various vehicles, including SUVs, pickup trucks, sedans, commercial vehicles and others.
2. Dual safety protection: Equipped with a pneumatic double-tooth self-locking system and an explosion-proof oil pipe safety structure, it is safe and reliable, effectively preventing accidents.
3. Standard lifting capacity of the lift: 4 tons and 4.5 tons.
4. Four enforced oil cylinders with imported Italian seals; the inner walls of the oil cylinders adopt mirror finish treatment.
5. The control unit features easy operation (24V control voltage) and is equipped with an emergency stop function to ensure operational safety.
6. Platform length: 4500 mm.
7. 25 mm thick and 135 mm wide solid scissor arms; the locking teeth are cut by 10,000-watt laser, with reinforcing ribs added to the scissor arms for enhanced sturdiness.
8. Integrated three-tooth locking structure; the locking teeth of the scissor arms are integrally cut by 10,000-watt laser.

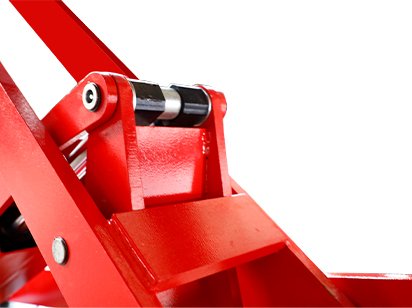

All oil filling ports are built-in for convenient greasing in the later stage.

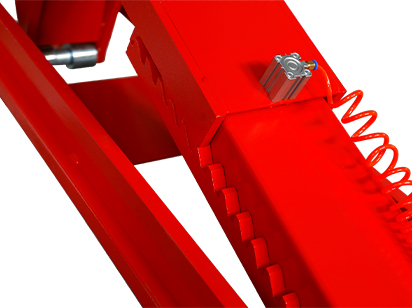

Mechanical lock with safety pneumatic lock, providing dual safety protection.

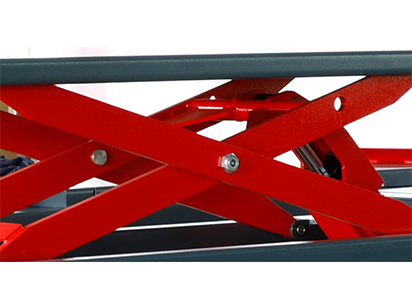

The scissor arms are made of 25mm solid manganese steel, not hollow tubes.

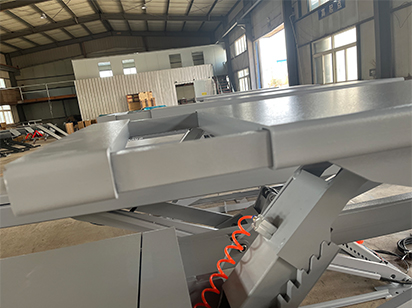

The secondary lifting worktable can be extended.

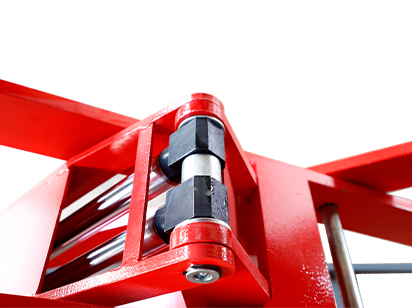

Steel plates for oil cylinder lugs and oil cylinder support arms are thickened.

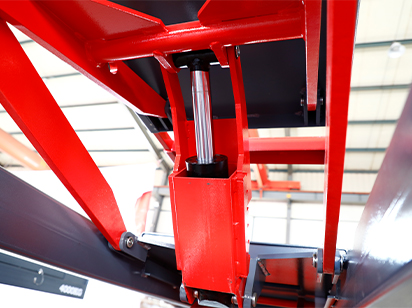

Imported Italian seals with thickened oil cylinders.

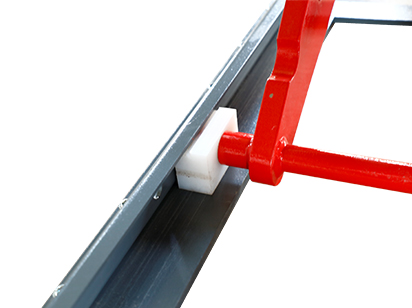

Extra-large wear-resistant sliding blocks.

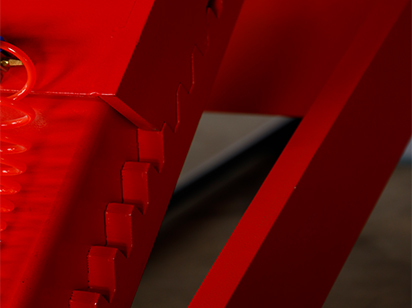

Integrated three-tooth locking structure, the locking teeth are cut from whole plates by 10,000-watt laser.
| Model | ZH-4.0CD |
| Lifting Capacity | 4000Kg/4500Kg |
| Max. Lifting Height | 1800mm |
| Min. Height(Floor Height) | 200mm |
| Platform Length | 4500mm |
| Single Platform Width | 670mm |
| Installation Width | 2140mm |
| Working Voltage | 220V / 380V |
| Working Power | 2.2Kw |
| Lift Time | 55S |
