1. The side slide plate is movable and suitable for various vehicles, including SUVs, pickup trucks, sedans, commercial vehicles and others.
2. In-ground installation, space-saving for work area
3. Dual safety protection: Equipped with a pneumatic double-tooth self-locking system and an explosion-proof oil pipe safety structure, it is safe and reliable, effectively preventing accidents.
4. Standard lifting capacity of the lift: 4 tons and 4.5 tons.
5. Four enforced oil cylinders with imported Italian seals; the inner walls of the oil cylinders adopt mirror finish treatment.
6. The control unit features easy operation (24V control voltage) and is equipped with an emergency stop function to ensure operational safety.
7. Platform length: 4500 mm.
8. 25 mm thick and 135 mm wide solid scissor arms; the locking teeth are cut by 10,000-watt laser, with reinforcing ribs added to the scissor arms for enhanced sturdiness.
9. Integrated three-tooth locking structure; the locking teeth of the scissor arms are integrally cut by 10,000-watt laser.

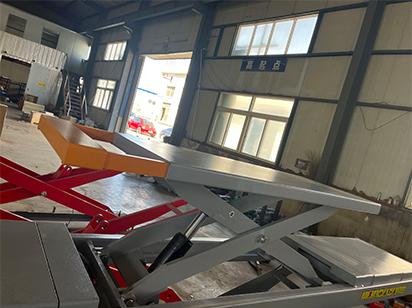

The secondary lifting worktable can be extended.

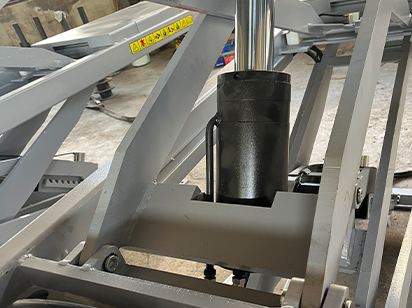

Tool car accessories complete

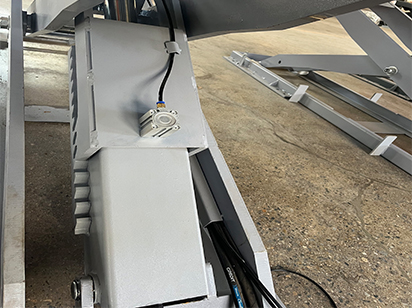

Mechanical lock with safety pneumatic lock, providing dual safety protection.

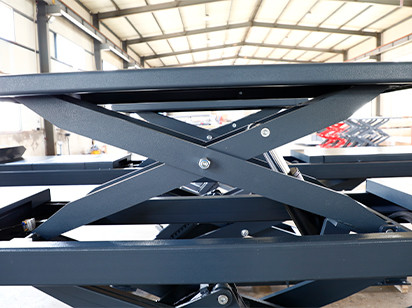

The scissor arms are made of 25mm solid manganese steel, not hollow tubes.

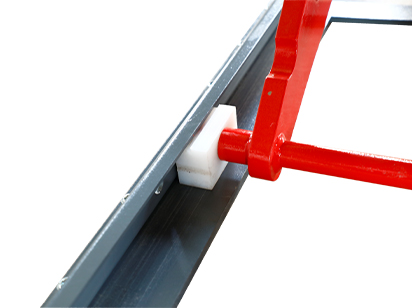

Extra-large wear-resistant sliding blocks.

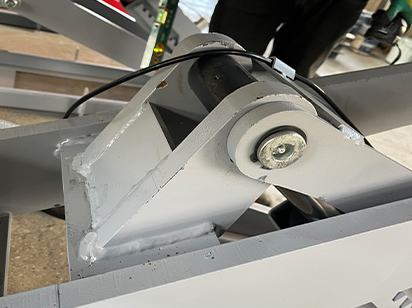

All oil filling ports are built-in for convenient greasing in the later stage.

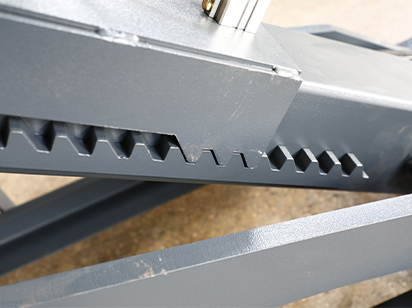

Integrated three-tooth locking structure, the locking teeth are cut from whole plates by 10,000-watt laser.

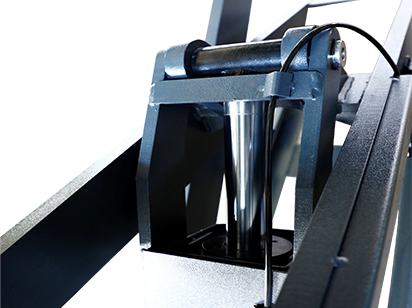

Steel plates for oil cylinder lugs and oil cylinder support arms are thickened.
| Model | ZH-4.0DJ |
| Lifting Capacity | 4000KG/4500KG |
| Max. Lifting Height | 1850 mm |
| Min. Height(Floor Height) | 330 mm |
| Platform Length | 4500 mm |
| Single Platform Width | 625 mm |
| Installation Width | 2050 mm |
| Working Voltage | 220V/380V/240V/415V |
| Working Power | 2.2KW |
| Lift Time | 55S |
| Air Source (kg/cm²) | 6-8kg/cm2 |
