1. Hidden scissor-type ultra-thin structure, no construction pit required, small space occupation.
2. Four reinforced oil cylinders with imported Italian seals; the inner walls of the oil cylinders adopt mirror finish treatment.
3. The control unit is easy to operate (24V control voltage) and equipped with an emergency stop function to ensure operational safety.
4. Dual oil circuits with one-button leveling function.
5. Integrated three-tooth locking structure, the scissor arms are integrally cut by 10,000-watt laser.

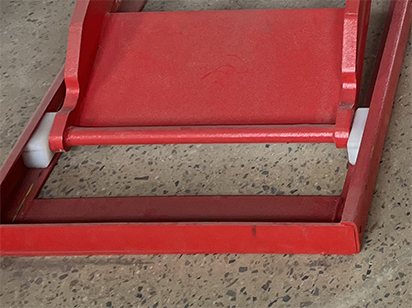

Extra-large wear-resistant sliding blocks.

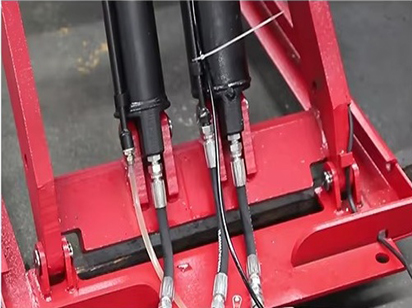

Auxiliary cylinder oil return system.

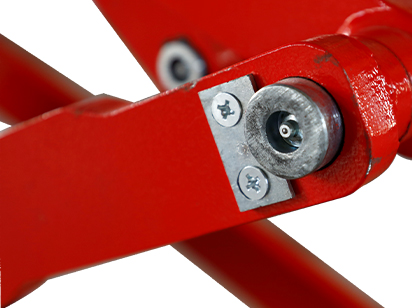

Recessed oil filling hole

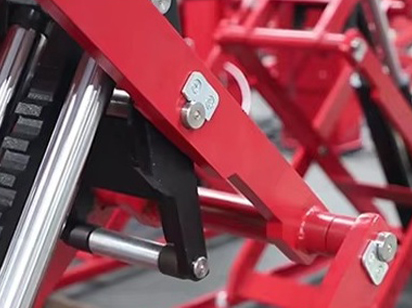

Integrated three-tooth locking structure, whole plate cutting by 10,000-watt laser.

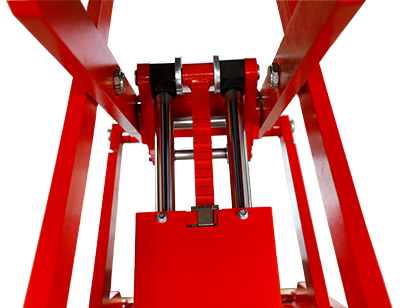

Imported Italian seals with thickened oil cylinders.
| Model | ZH-3.5CX |
| Lifting Capacity | 3500kg |
| Lifting Height | 110-1850mm |
| Table Length | 1480-2090mm |
| Table Width | 650mm |
| Lifing Time | 60S |
| Power Supply | 220V/380V |
| Motor Power | 2.2 KW |
| Air Supply Pressure (kg/cm2) | 6-8kg/cm2 |
