1. It is helpful to assemble and disassemble battery packs for electric vehicles andengine, gearbox, drive axle, fuel tank, suspension, bracket and chassis components for traditional vehicles.
2. Equipped with a pneumatic lock system, safe and reliable, effectively preventing accidents.
3. Standard lifting capacity of the lift: 1.5 tons.
4. Reinforced oil cylinder, imported Italian seals, and mirror finish on the inner wall of the cylinder.
5. 4 heavy-duty load-bearing casters with direction locks, enabling quick switching between fixed and swivel casters for easy and flexible movement.
6. Lifting driven by pneumatic hydraulic system, foot pedal control for effortless operation.

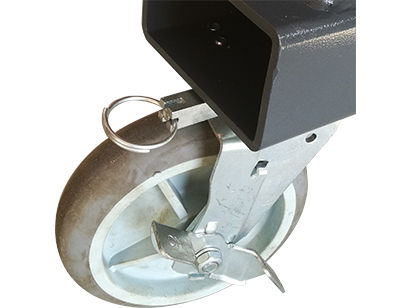

Universal wheel with directional lock

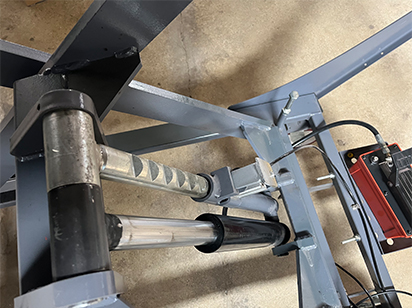

Reinforcing cylinder

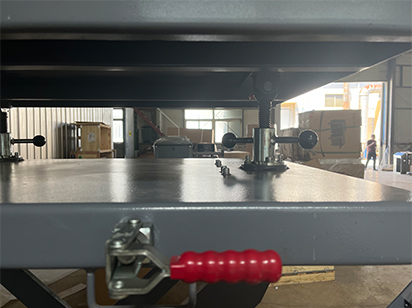

Platform angle can be adjusted

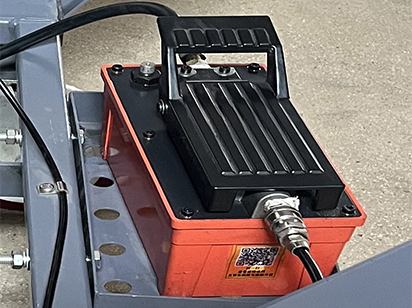

pneumatic pump

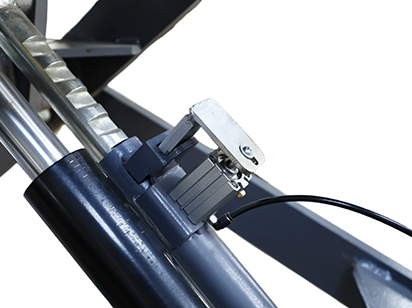

Pneumatic unlocking for safety assurance
| Model | ZH-1.5E |
| Initial Height | 800mm |
| Rated Lifting Weight | 1500kg |
| Lifting Height | 1800mm |
| Rising Time | 60s |
| Descending Time | 20s |
| Platform Length | 1500mm |
| Platform Width | 800mm |
| Total Weight | 400kg |
| Hydraulic Oil Tank Capacity | 2.8L |
| Hydraulic Pressure | 70Mpa |
| Working Environment Temperature | -10-40℃ |
| Working Environment Humidity | 30-95%RH |
| Equipment Insulation Class | E Class |
