1. Hydraulic lifting platform operation with 3500kg lifting capacity.
2. Durable, heavy-duty constructions with powder coat finish.
3. Universal anchoring system with adjustable height pinch weld/clamp assemblies.
4. Clear Floor, 360 degree pulling capability.
5. Twin 10-ton round pull tower with telescoping tower heads.
6. Adjustable tower collars.
7. Quick disconnect hydraulic fitting & hose connection.
8. Drive-on ramps.

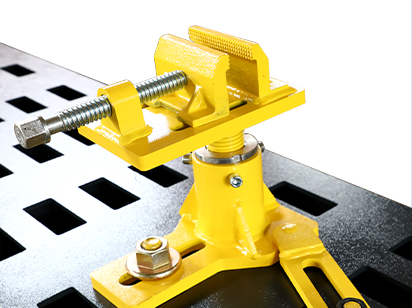

High-end vise clamps with powerful jaw clamping force and a high safety factor.

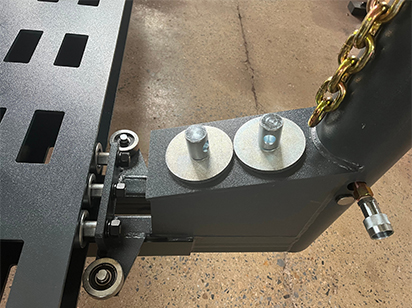

Ring platform, to ensure hydraulic towers can moved freely alongside platform and turn360°as operating

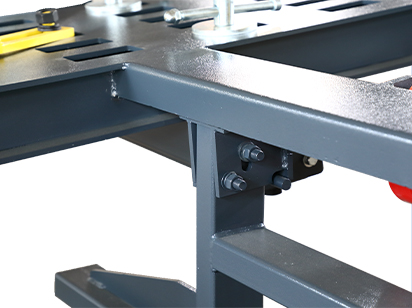

Reinforced steel sheet, strong & durable

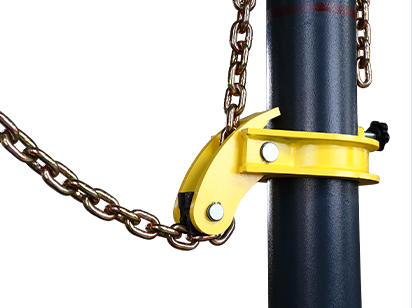

Eagle beak-type guide ring design delivers tighter clamping and higher load-bearing capacity.
| Model | Z-500 |
| Max Lifting Weight | 3500KG |
| Working Platform Length | 5600MM |
| Working Platform Width | 2200MM |
| Working Platform Height | 520MM |
| The Max Lifting Force of the Tower Cylinder | 100KN |
| The Pressure of The Air Source | 0.8MPA |
| The Max Working Pressure of Hydraulic System | 70MPA |
| The Pulling Range of the Tower | 360° |
| Platform Lifting Type | One Side Tilting |
