1. The integrally machined platform features a flatter surface and higher precision, ensuring a reliable measurement reference.
2. The precision pin-type multi-tooth vise jaws provide a firmer hold for vehicle bodies.
3. The sliding grooves for easy clamp movement facilitate the loading and unloading of accident-damaged vehicles without the need to remove the clamps from the platform.
4. The guide ring can slide freely on the pulling tower, keeping the chain under linear tension at all times.
5. The chain and guide ring are combined more closely and rationally, delivering higher safety and greater reliability.
6. The hydraulic system is far superior to similar products in both sealing performance and stability, offering a worry-free user experience once in use.
7. The sheet metal tool accessories are made of 35CrMo alloy steel with heat treatment. Designed for deformation correction of workpieces in any shape, they enable more accurate, convenient and efficient correction operations.

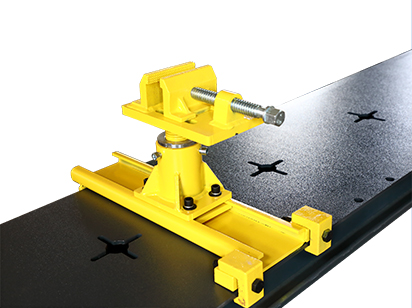

High-end vise clamps with powerful jaw clamping force and a high safety factor.

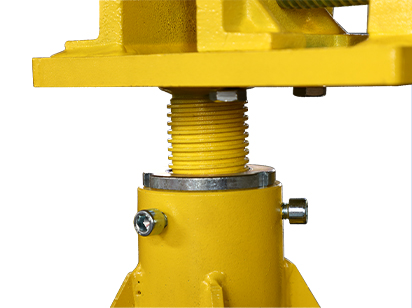

Adjustable vise sleeve eliminates mismatches due to varying vehicle chassis heights.

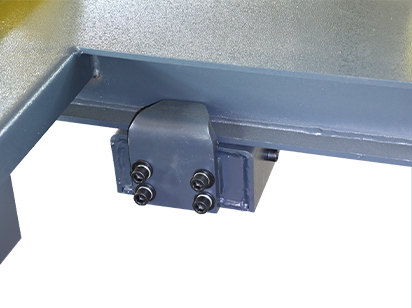

Reinforced steel plates for superior sturdiness and durability.

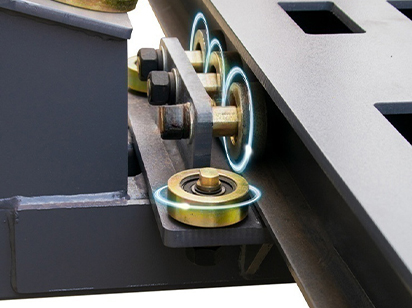

Smoothly rolling pulling tower casters enable flexible movement and easy operation.

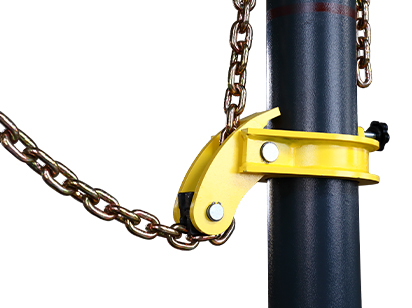

Eagle beak-type guide ring design delivers tighter clamping and higher load-bearing capacity.
| Model | Z-600 |
| Max Lifting Weight | 3500KG |
| Working Platform Length | 5600MM |
| Working Platform Width | 2200MM |
| Working Platform Height | 520MM |
| The Max Lifting Force of the Tower Cylinder | 100KN |
| The Pressure of the Air Source | 0.8MPA |
| The Max Working Pressure of Hydraulic System | 70MPA |
| The Pulling Range of the Tower | 360° |
| Platform Lifting Type | One Side Tilting |
